Micromachining
Small Parts Machining Services: Precision at the Microscopic Level
When your application demands components measured in micrometers rather than millimeters, Swissturn/USA’s small parts machining services deliver the precision, consistency, and reliability that critical industries require. Our decades of experience in Swiss screw machining uniquely positions us to manufacture micro machined parts that meet the most stringent specifications across medical, aerospace, defense, and electronics applications.
The Critical Nature of Small Parts Manufacturing
Small parts manufacturing represents one of the most challenging aspects of precision machining. Components with features measured in thousandths of an inch require not just advanced equipment, but deep understanding of material behavior, thermal management, and process control at microscopic scales. A single micrometer of deviation can render a micro machined component completely unusable in its intended application.
Our Star CNC Swiss screw machines excel in this demanding environment, producing micro machined parts ranging from 0.010″ in diameter with tolerances held to ±0.0001″. This capability stems from the inherent design advantages of Swiss-type machining, where the workpiece is supported by a guide bushing throughout the cutting process, virtually eliminating deflection that would compromise precision in conventional machining.
Mechanical Micromachining Techniques: Our Core Competencies
At Swissturn, we specialize in mechanical micromachining techniques that utilize physical tooling to achieve exceptional precision in micro machined components. Our comprehensive capabilities encompass four primary mechanical processes:
CNC Turning for Micro Components
Our Swiss-type CNC turning excels in producing small shafts, pins, and cylindrical micro components. The workpiece rotates against stationary cutting tools, enabling us to maintain consistent dimensional control across thousands of pieces. This process forms the foundation of our small parts manufacturing capabilities, particularly for components requiring rotational symmetry and tight concentricity requirements.
Precision Micro Milling Operations
Utilizing rotating cutting tools against stationary workpieces, our milling capabilities create complex micro features including slots, flats, and intricate geometries. This process proves invaluable for manufacturing microfluidic device components, optical assemblies, and electronic circuitry elements that require precise dimensional relationships between multiple features.
Micro Drilling Capabilities
Our advanced drilling operations accommodate hole diameters as small as 0.005″ with exceptional accuracy. These capabilities support the production of micro components requiring precise fluid passages, electrical connections, or assembly features where traditional machining methods would compromise part integrity.

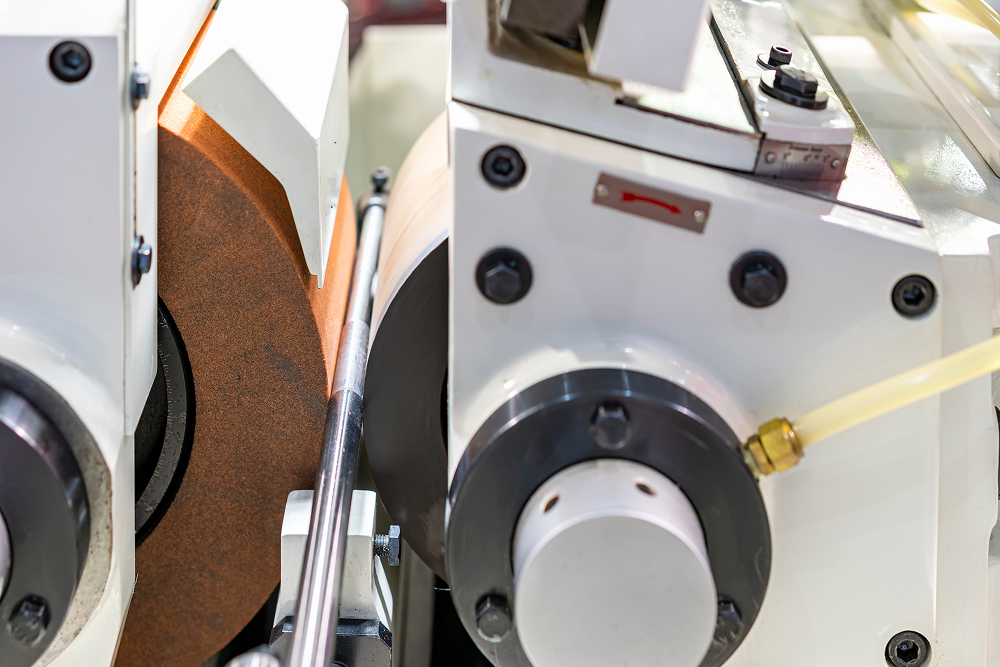

Centerless Grinding for Micro Finishing
Our in-house centerless grinding capabilities, enhanced through the integration of Malden Centerless Grinding Company, provide the final precision required for micro CNC machining applications. This grinding process delivers the clean, smooth surfaces and tight diameter tolerances essential for micro components in medical and aerospace applications.
Advanced Micro CNC Machining Capabilities
Micro CNC machining at Swissturn encompasses both mechanical process innovations and advanced equipment configurations that enable consistent production of components that push the boundaries of what’s physically possible. Our smallest machines, the SR-10J models with 10mm (3/8″) bar capacity, are specifically configured for ultra-high-volume production of miniature components.
Technical Specifications for Micro Machined Components
- Diameter Range: 0.010″ to 0.375″ (0.25mm to 9.5mm)
- Length Capabilities: 0.010″ to 4″ for micro components
- Tolerance Achievement: ±0.0001″ (±0.0025mm) standard
- Surface Finish: Ra 8-16 microinches achievable
- Production Volumes: 1,000 to 10,000,000+ pieces annually
Understanding Non-Mechanical Micromachining Technologies
While Swissturn specializes in mechanical micromachining techniques, we recognize that the broader micromachining landscape includes non-mechanical processes that our customers may encounter in their supply chains. These technologies—including Electrical Discharge Machining (EDM), laser machining, electrochemical machining (ECM), and plasma etching—utilize energy-based material removal methods rather than physical cutting tools.
Our engineering team maintains comprehensive knowledge of these alternative processes to provide informed guidance when your precision small parts manufacturer requirements might benefit from hybrid manufacturing approaches or when design modifications could optimize components for our mechanical processes.
Materials Expertise for Small Parts Machining
The selection of appropriate materials becomes even more critical when manufacturing at microscopic scales. Our precision small parts manufacturer capabilities extend across a comprehensive range of materials, each presenting unique challenges and opportunities:
303 and 316L stainless steels for medical implants, surgical instruments, and pharmaceutical equipment where biocompatibility and corrosion resistance are paramount.
Grade 2 and Ti-6AL-4V for aerospace applications requiring exceptional strength-to-weight ratios in components where every gram matters.
C360 brass and tellurium copper for electrical connectors and electronic components where conductivity and machinability intersect.
Delrin, peek, ultem, hydex, pvc and medical-grade nylons for applications requiring electrical isolation, chemical resistance, or reduced weight.
Industry Applications Driving Micro Machined Parts Demand
Medical Device Manufacturing
The medical device industry represents our largest market for small parts manufacturing. Endoscopic components, catheter assemblies, and surgical instrument parts require not just dimensional precision, but also biocompatibility certification and traceability documentation. Our ISO 9001:2015 Registration and comprehensive quality management system ensure that every micro machined component meets FDA and international regulatory standards.
Aerospace and Defense Systems
Modern aerospace systems rely increasingly on miniaturized components that must perform reliably under extreme conditions. From micro fasteners in avionics systems to precision pins in guidance mechanisms, our micro machined components contribute to mission-critical applications where failure is not an option.
Electronics and Photonics
The relentless miniaturization of electronic devices drives demand for increasingly smaller precision components. Connector pins, switch components, and optical assembly parts manufactured to our specifications enable the next generation of consumer and industrial electronics.
Quality Assurance in Micro Manufacturing
When working at microscopic scales, traditional inspection methods become inadequate. Our quality management system incorporates advanced metrology equipment specifically designed for micro component verification:
- Vision Measuring Systems: Micro-Vu and Oasis Elite systems for non-contact dimensional verification
- Laser Micrometers: LaserLinc systems for real-time diameter monitoring during production
- Coordinate Measuring Machines: Mitutoyo Crysta-Apex systems for complex geometry verification
- Optical Comparators: For profile verification and surface feature analysis
Engineering Partnership for Micro Component Success
Successful small parts machining begins with collaborative design optimization. Our Engineering Team works closely with your designers to identify potential manufacturability challenges before they impact production schedules or costs. Common design modifications that improve micro component production include:
- Feature Size Optimization: Ensuring minimum feature sizes align with tooling capabilities
- Tolerance Stack-up Analysis: Identifying critical dimensions that drive manufacturing costs
- Material Selection Guidance: Balancing performance requirements with machinability
- Secondary Operation Integration: Designing for efficient post-machining processes
The ‘Swissturn Advantage’ in Small Parts Manufacturing
Our position as a precision small parts manufacturer is built on more than four decades of Swiss screw machining expertise. This experience translates into tangible advantages for your micro component projects:
Proven Repeatability: Our statistical process control systems ensure that the millionth part matches the dimensional characteristics of the first, critical for high-volume medical and aerospace applications.
Supply Chain Stability: As a 100% employee-owned company, we provide the long-term partnership stability that complex micro component projects require.
Technical Innovation: Continuous investment in advanced Star CNC Swiss machines and metrology equipment keeps us at the forefront of small parts manufacturing capabilities.
Partner with Micro Machining Experts
When your application demands the ultimate in precision manufacturing, Swissturn/USA’s small parts machining services deliver the expertise, capability, and reliability that critical industries require. Our comprehensive approach to micro component manufacturing—from initial design collaboration through final inspection and delivery—ensures that your precision requirements are not just met, but exceeded.
Ready to discuss your micro machining requirements? Contact our Engineering Team today to explore how our small parts manufacturing capabilities can support your next precision component project. Let’s collaborate on solutions that push the boundaries of what’s possible in micro machined components.
